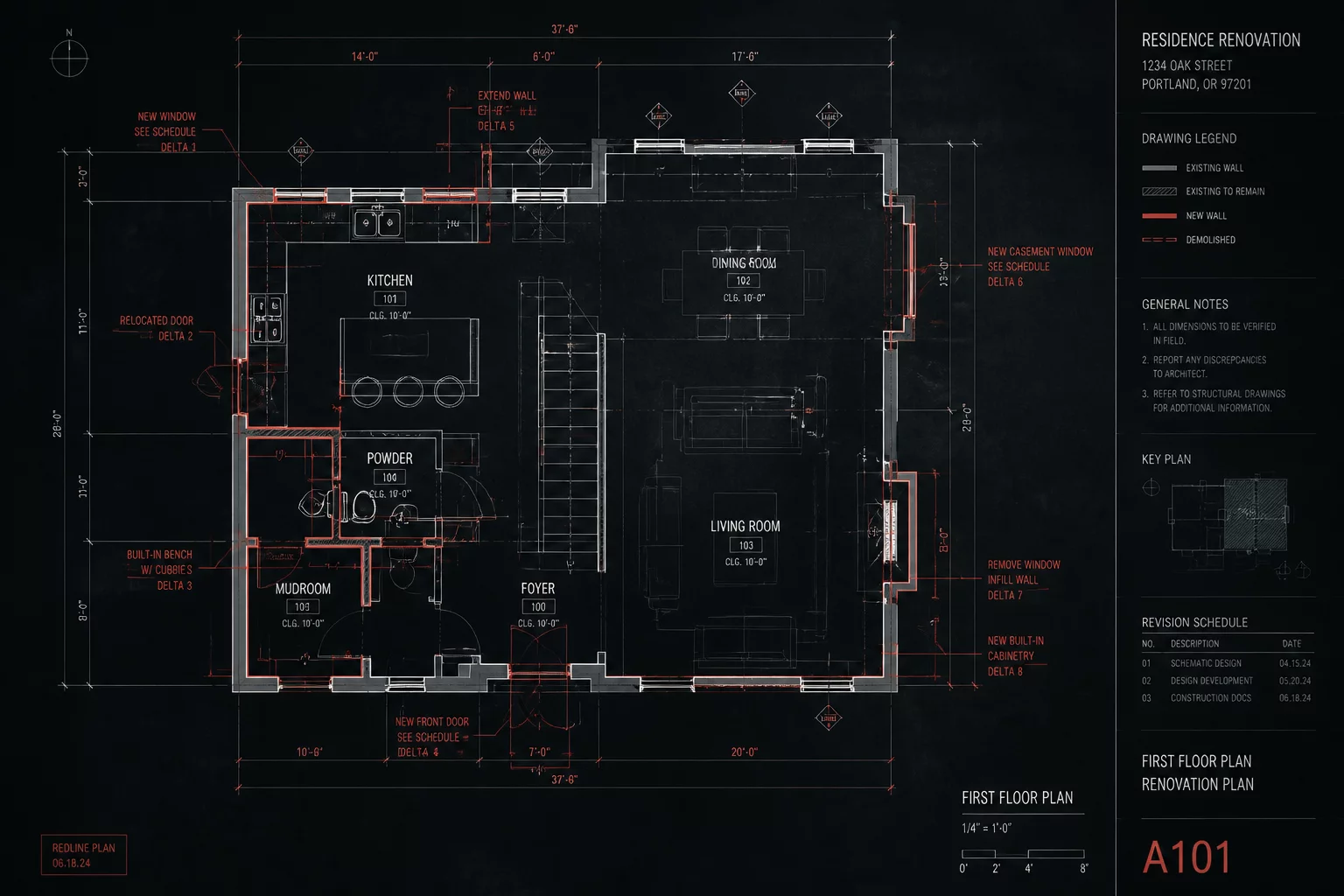

Architectural redline delta plan showing existing and proposed layout changes
EXISTING-TO-PROPOSED JOURNALREVISION DELTA VOL. 01

Make Remodel Changes Easier to Read

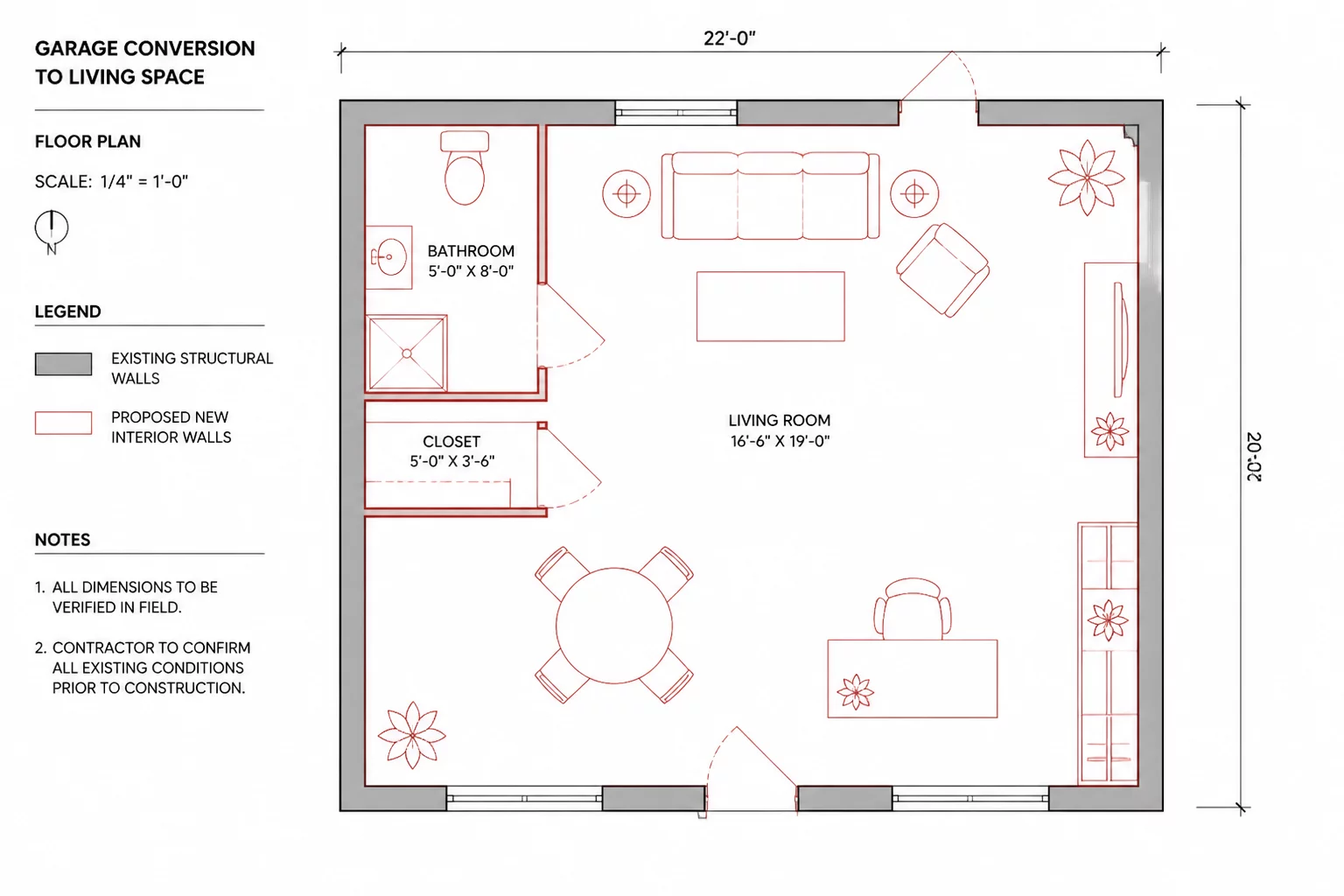

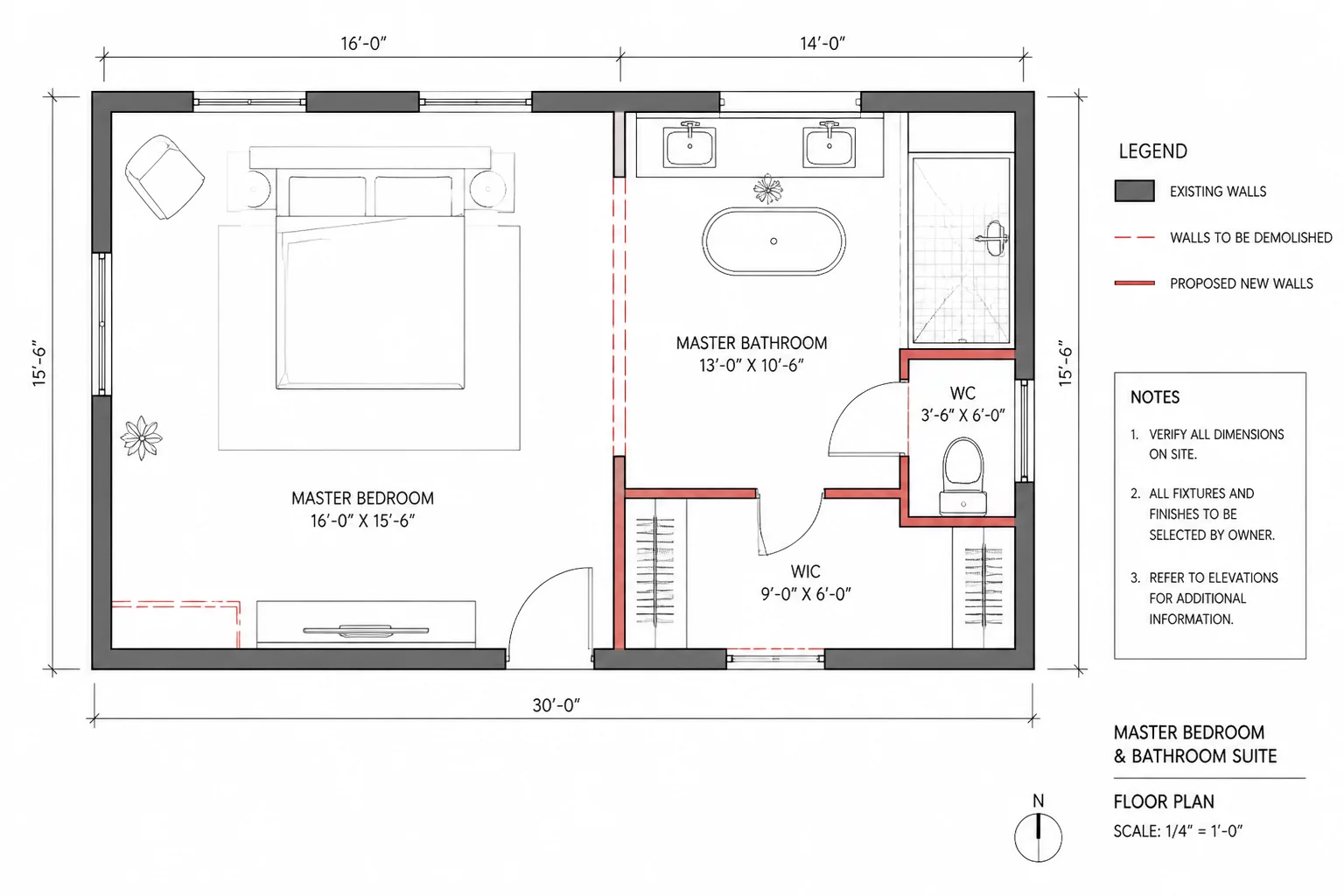

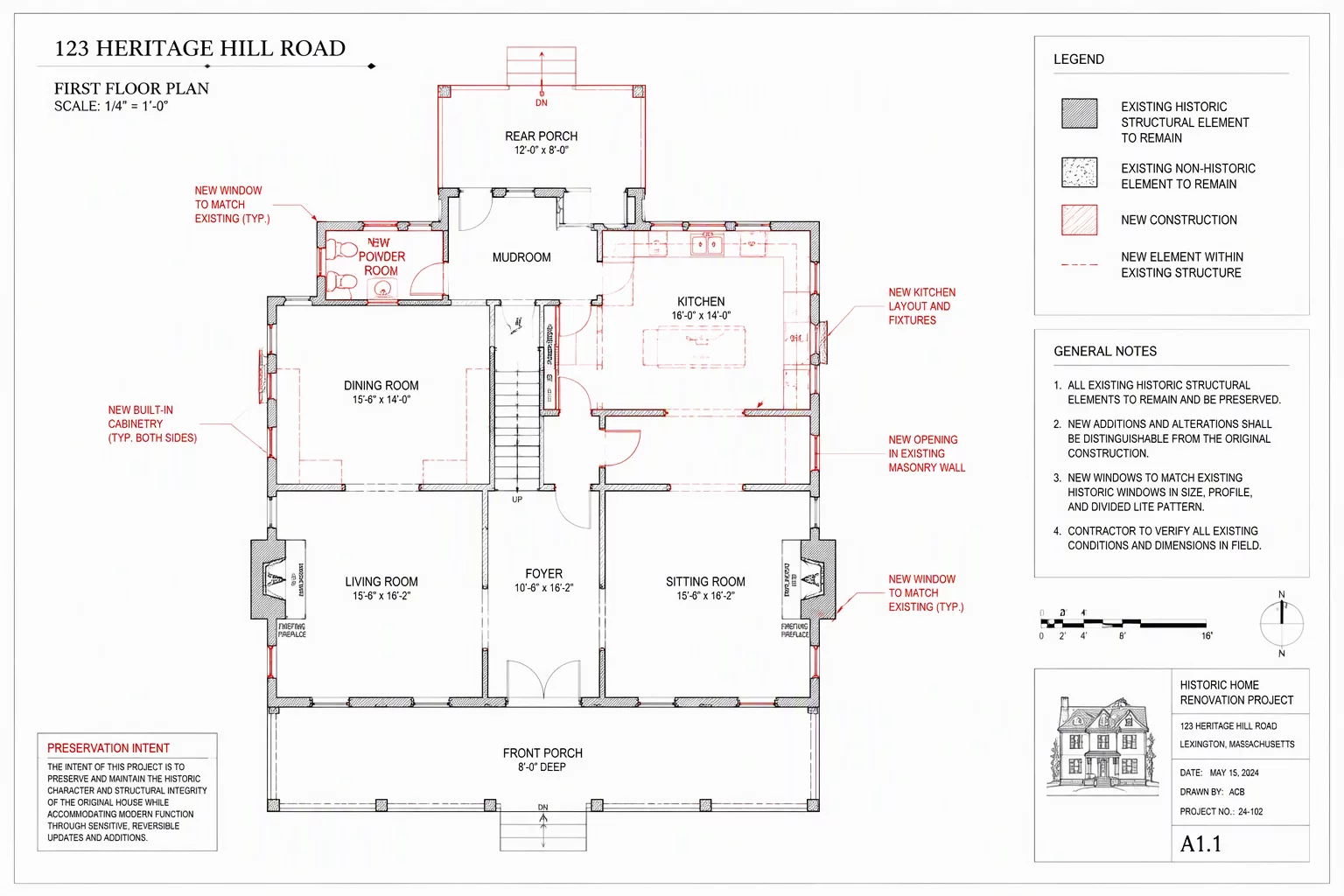

Explore before-and-after cases showing retained elements, removals, additions, plan changes, and documentation consequences.

Explore Remodel DeltasLayout Analysis
SPEC INDEXAUDITED
Grey LineworkAs-built retained structural envelopes
Redline OverlaysDemolitions, openings & framed offsets
Directional DeltasCirculation paths & spatial consequence
CHIEF ARCHITECT REVIEWSDOCS
Plan Delta Auditing

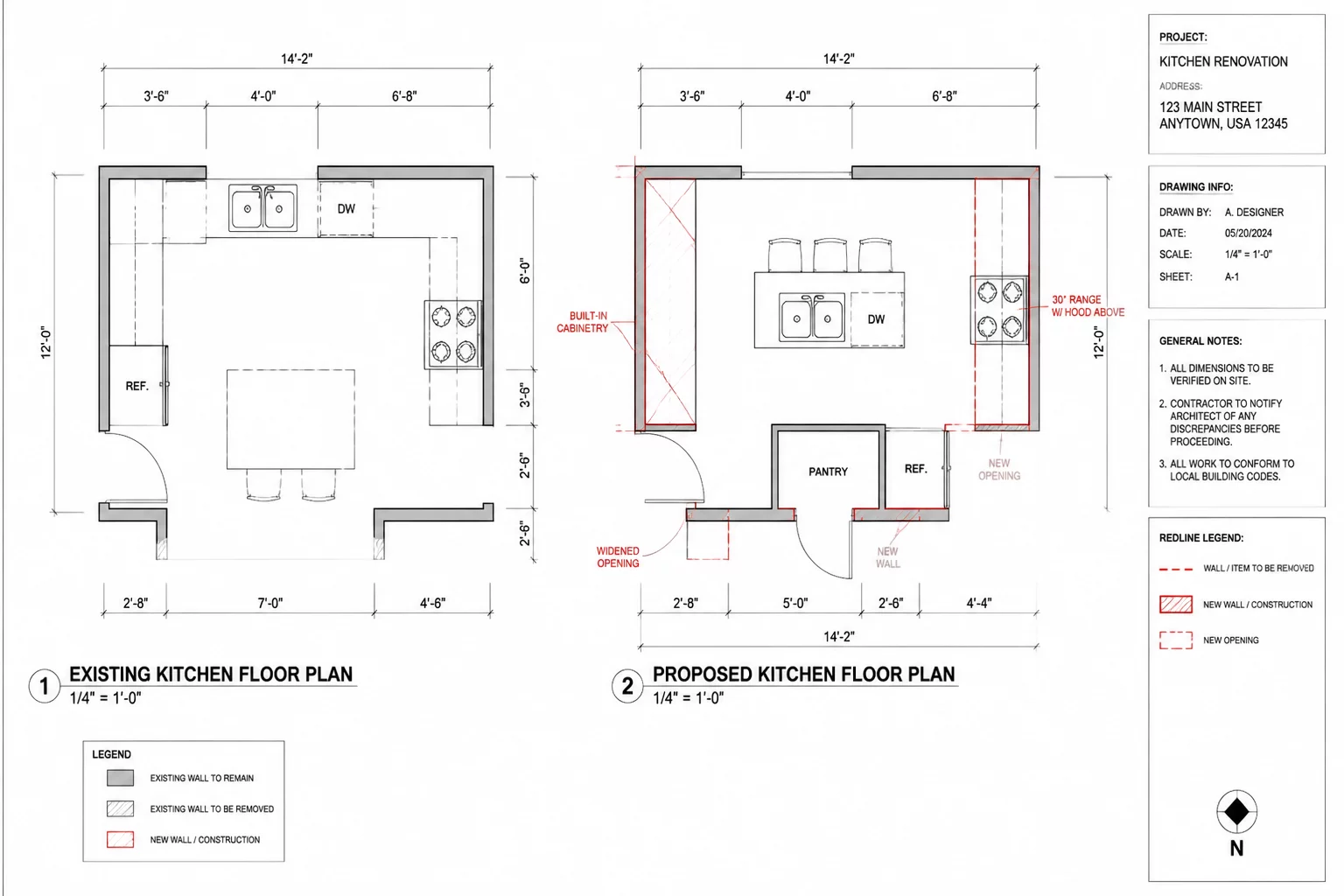

Existing vs. Proposed Layout Breakdown

Systematic tracking of structural elements, spatial adjustments, and technical notes within Chief Architect remodel workflows.

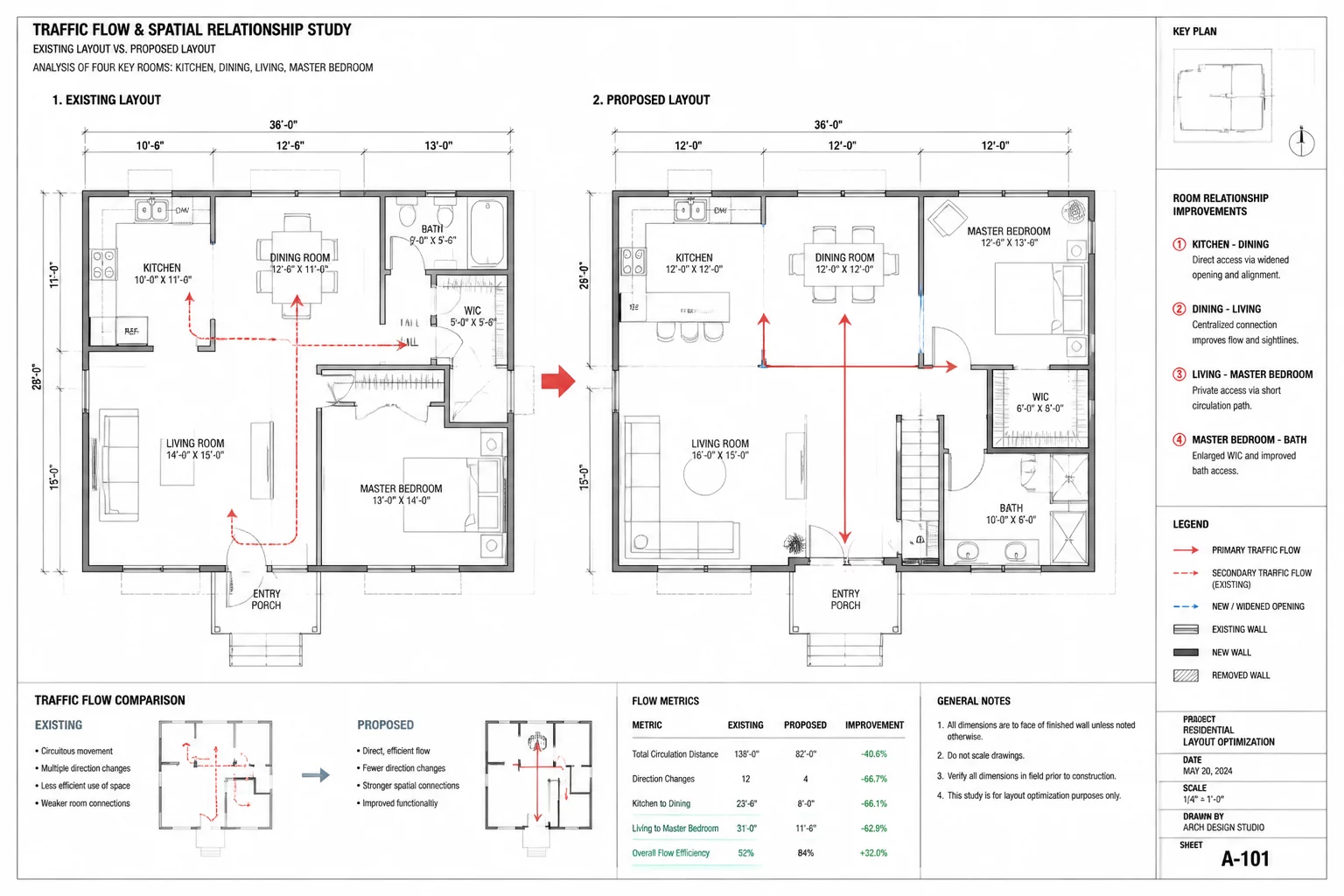

Four Relationships Changed Floor Plan
Case Audit #04
2026-08-18• Elena Rostova

Four Relationships Changed

A rigorous analysis of circulation dynamics when one partition removal shifts four interconnected functional zones from existing baseline to proposed delivery.

Explore Full Case

Delta Parameter Breakdown

Doc ID: CA-REV-842

Select a revision layer below to analyze the operational changes between existing conditions and proposed execution.

Preserved Core Elements

Structural Baseline Intact
  • Exterior Bearing Envelope: North and East exterior masonry walls remain unaltered to preserve load balance and avoid foundation underpinning.
  • Central Mechanical Chase: Primary HVAC return duct stack and 4-inch soil stack retained in original alignment.
  • Fenestration Openings: Three historic timber double-hung windows along east facade maintained with upgraded seals.

Demolition & Removal Layer

Clearing Floor Space
  • Interior Partition Wall W-03: Non-bearing 2x4 partition wall between kitchen and formal dining area removed (14'-6" span).
  • Pantry Enclosure: Obsolete corner drywall pantry demolished to maximize straight-run countertop geometry.
  • Suspended Ceiling Drop: 8-inch drywall soffit removed to expose uniform 9'-6" framing plane throughout the level.

Proposed Insertions

New Material Assets
  • Flush LVL Structural Beam: Dual 1-3/4" x 11-7/8" LVL recessed flush into ceiling joists with Simpson Strong-Tie hangers.
  • Central Island & Secondary Prep Sink: 9'-0" x 4'-0" monolithic island with dedicated 1.5-inch water supply line and electrical stub-ups.
  • Dedicated Appliance Tower: Built-in cabinetry wall with integrated convection and microwave oven column.

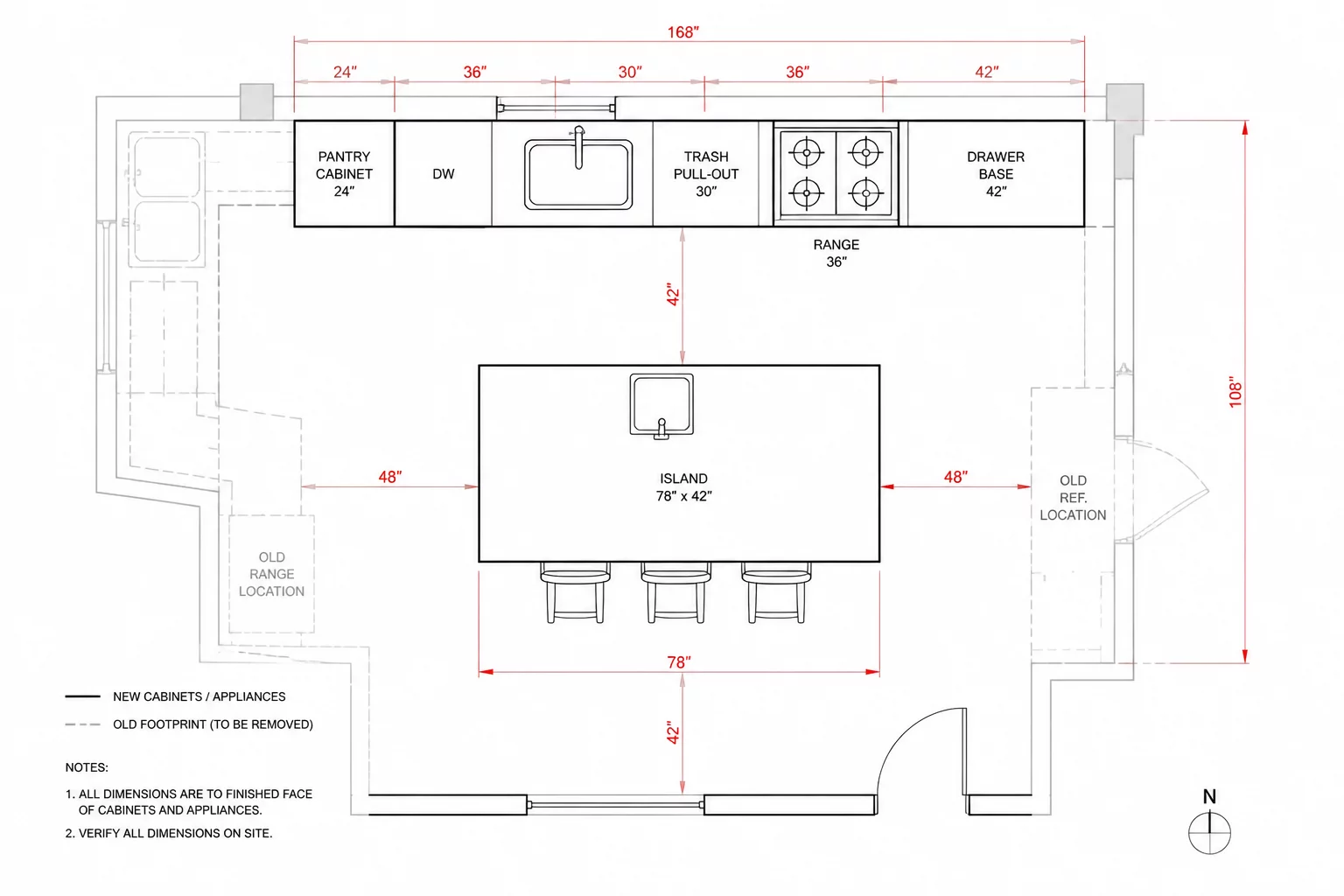

Circulation & Spatial Delta

Flow Optimizations
  • Work Triangle Expansion: Distance between prep, cook, and clean zones optimized to 18 total linear feet for dual-cook circulation.
  • Clear Aisle Widths: All perimeter corridors expanded from existing 34" bottleneck to a minimum of 44" clear walkway width.
  • Natural Light Penetration: Sightlines from living room to backyard glazing unblocked, boosting daylight reach by 60%.

Technical Revision Notes

Chief Architect Annotations
  • Rev 2.4 - Joist Direction Verification: Field verify 2x10 joist span directions before final header shop drawings are approved.
  • Rev 2.3 - Gas Line Reroute: 3/4" gas supply branch shifted 6 feet west along floor cavity to service new slide-in range.
  • Rev 2.1 - Electrical Panel Load Audit: Confirmed 200A service capacity accommodates new 50A induction range sub-feed.
Deep Dive Case Analysis

The Wall Was Removed, but the Existing Condition Still Matters

Read Full Study
Structural Layers 5 Inspection Phases
Phase 01 Original Framing Date: 1984 As-Built

The Original 2x4 Bearing Partition & Fenestration

Before demolition permits are stamped, field measurements must verify whether secondary partition studs conceal lateral shear ties or stacked upper-level point loads. Even when an interior wall seems non-structural, settling over four decades frequently redistributes ceiling joist deflection onto intermediate framing.

Bearing Status Semi-continuous transfer
Wall Height 2,440 mm (8'-0")
Utility Presence 1/2" Copper & 14/2 Romex

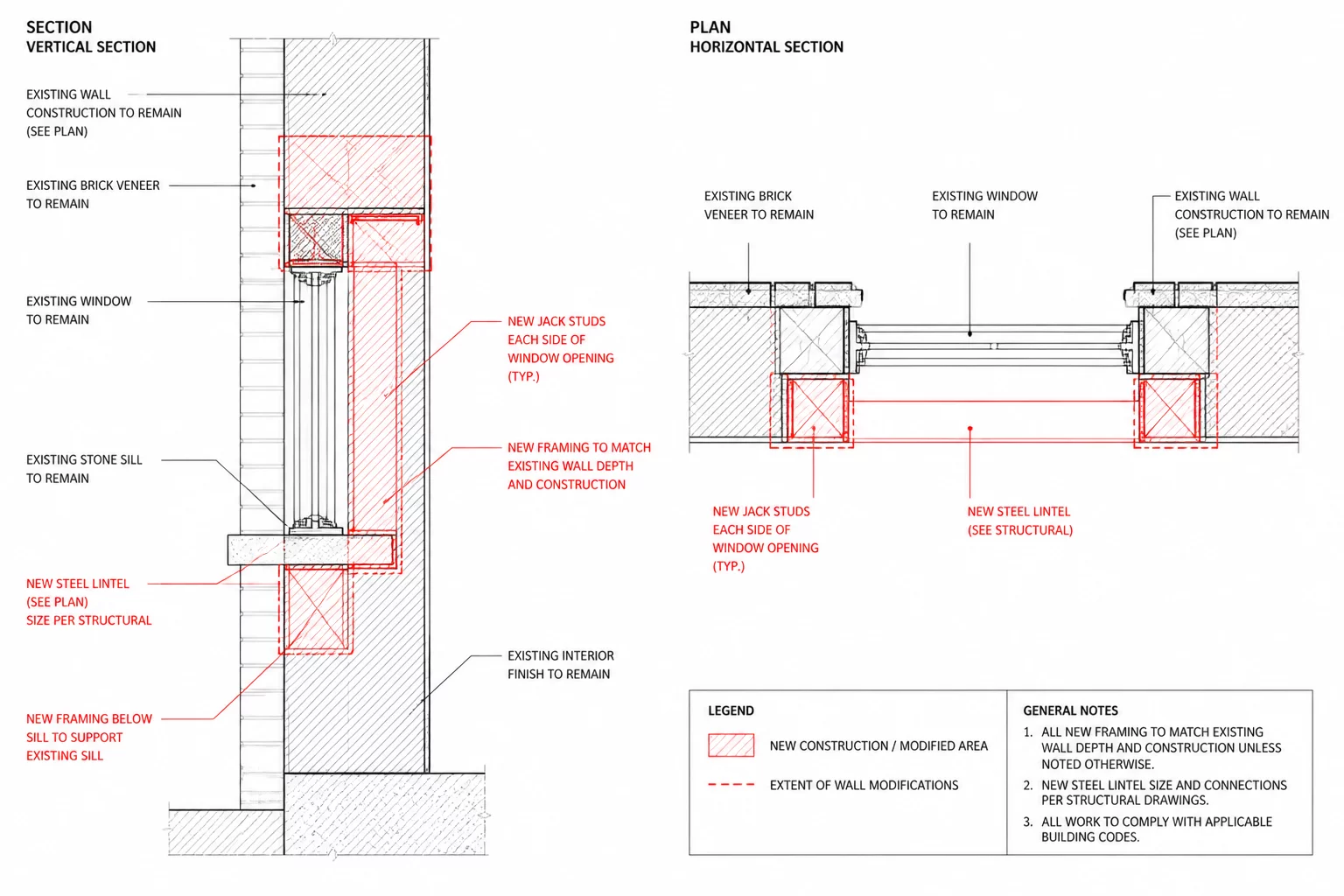

Existing Window Technical Analysis
Referenced Case Study

Existing Window Condition Analysis

Marcus Vance • Aug 25, 2026
Phase 02 Sequence: Controlled Removal

Demolition Envelope & Temporary Shoring Protocol

Removal of the separating wall requires a two-stage temporary cribbing wall placed 900 mm off the centerline. Plaster keys and subfloor penetrations must be inspected for hidden HVAC supply trunks passing from the crawlspace into the second-story floor plenum.

Temporary Support Twin 2x6 screw jacks
Debris Volume 3.8 m³ drywall & timber
Hazard Inspection ACM negative / Lead free

Critical checkpoint: Verify ceiling joist crowns prior to cutting bottom plates to avoid sudden deflection drop.

Phase 03 Structural Engineered Solution

Recessed Steel Flush Beam & Spatial Continuity

The proposed layout consolidates living and culinary zones into a continuous 7.2 m clear span. A W8x24 wide-flange steel beam is recessed into the joist cavity using top-mount hangers, preserving unbroken 2.44 m finished ceiling lines without unsightly dropped soffits.

Beam Profile W8x24 Structural Steel
End Bearing Triple 2x6 king/jack posts
Clear Span 5,480 mm clear

Beam installation eliminates vertical sightline interruptions while accommodating concealed electrical chases.

Phase 04 Perimeter Impact Analysis

Repercussions on Adjacent Dining & Foyer Zones

Removing this single wall altered acoustic isolation for the adjacent study, modified heating supply CFM balance across three zones, and exposed an uneven subfloor elevation differential of 14 mm between the original dining room and kitchen sub-assemblies.

Leveling Required 14 mm self-leveler bed
HVAC Balancing +180 CFM damper trim
Acoustic Delta STC dropped from 44 to 32

Spatial expansions require adjacent floor patch feathering to prevent visible seams under continuous hardwood.

Phase 05 Redline Cross-Examination

Discrepancies Between Sheet A-102 and Field Reality

The central documentation oversight was that the revision note specified 'remove interior non-bearing wall' without referencing the plumbing vent stack servicing the bathroom above. This created a 3-week change-order delay during structural framing inspections.

Omitted Element 2" PVC secondary stack
Reroute Path East chase through pantry
Review Result Revised Sheet A-102 Rev C

Always verify MEP penetrations on existing plans prior to finalizing structural demolition scopes.

Critical Citations & Industry Reviews

Recognized in Architectural & Spatial Planning Press

How leading residential drafting publications and construction journals evaluate RemodelDelta Journal's existing-to-proposed layout methodology.

Architectural Systems QuarterlyFall 2026 Volume • Issue 42
“RemodelDelta Journal cuts through generic renovation glossy spreads by focusing strictly on the technical delta: how one removed bearing partition irrevocably shifts cross-axial sightlines, structural loads, and mechanical clearances.”
Drafting & Practice ColumnSpecial Focus: Chief Architect Remodel Workflows
Read About Our Journal
Residential CAD Review

“An essential blueprint dissecting revision note ambiguities.”

Highlighted as a primary reference for residential designers navigating the friction between drafted plan changes and explicit structural notes.

Technical Editorial DeskPublished September 2026
Design & Space Digest

“The purest existing-to-proposed analysis available online.”

Featured for unvarnished case reviews showing why retaining door positions or window openings often drives the entire reconfiguration logic.

Circulation & Layout StudiesPublished August 2026
Building Envelope Forum

“Rigorous architectural documentation over decorative hype.”

Commended for demonstrating how attic dormers and additions intersect with complex existing rooflines in real-world residential projects.

Structural Tie-In SectionPublished October 2026
COMMUNICATION PROTOCOLS & SLA

Guaranteed Response Times & Post-Review Inquiries

Every published case study and architectural analysis is backed by structured post-review communication channels. Our editorial and drafting desk provides verified technical responses within defined operational timelines.

Desk Active: Mon – Fri (08:00 – 18:00 EST)
PRIORITY 01

Plan Clarifications

Targeted questions regarding redline callouts, load-bearing partition indications, or specific wall removal annotations.

Response WindowUnder 4 Hours
Desk RouteDrafting Staff
ChannelDirect Ticket
PRIORITY 02

Workflow Inquiries

Submissions regarding Chief Architect remodel layers, existing-to-proposed conversion sets, and dimensional reconciliation.

Response WindowWithin 12 Hours
Desk RouteLead Architect
ChannelEmail Dispatch
PRIORITY 03

Complex Layout Audits

Comprehensive peer reviews of proposed roof ties, whole-house circulation alterations, or multiple structural relationships.

Response WindowWithin 24 Hours
Desk RouteEditorial Board
ChannelWritten Memo

Estimate Post-Project Response Window

Select your inquiry category to confirm the guaranteed turnaround time and the assigned specialist.

High PriorityTechnical Drafting Desk
Rapid annotation review and dimension verification
Guaranteed Window
4 Hours

Editorial Office Hours

Inquiries submitted outside of standard business hours enter the active queue at 08:00 EST on the following business day.

Monday – Friday08:00 – 18:00 EST
Saturday10:00 – 14:00 EST
SundayArchival Queue Only
Submit Direct InquiryEditorial Standards
Plan Discrepancy Analysis

Documentation Errors & Their Structural Costs

Misinterpreting existing-to-proposed plans triggers critical project delays, unexpected structural rework, and budget overruns. Systematic renovation revisions and disciplined drafting protocols eliminate these blind spots before construction starts.

Explore All Analyses
Risk Factor: HighEst. Rework: $4,500 – $12,000

Unverified Existing Framing Tolerances

Relying on legacy blueprints without on-site field verification causes proposed modular millwork, headers, and shear walls to mismatch reality by up to 2 inches.

Chief Architect Workflow Fix

Execute laser-scanned point cloud overlays directly onto the existing layer set prior to generating the proposed CAD detail sheets.

Risk Factor: CriticalEst. Rework: $8,000 – $22,000

Ambiguous Load-Bearing Demolition Notes

Vague graphical differentiation between non-bearing partitions and structural shear assemblies results in unpermitted structural cuts during rough demolition.

Chief Architect Workflow Fix

Isolate dedicated color-coded demolition layer sets with explicit bearing line callouts, header schedules, and temporary shoring specifications.

Risk Factor: ModerateEst. Rework: $3,200 – $7,500

Plumbing & HVAC Vertical Chase Clashes

Failing to map existing vertical stack penetrations within proposed open-concept zones forces costly joist coring or dropped soffit compromises.

Chief Architect Workflow Fix

Utilize multi-level 3D framing models to cross-reference HVAC chases and waste lines across existing joist direction matrices.

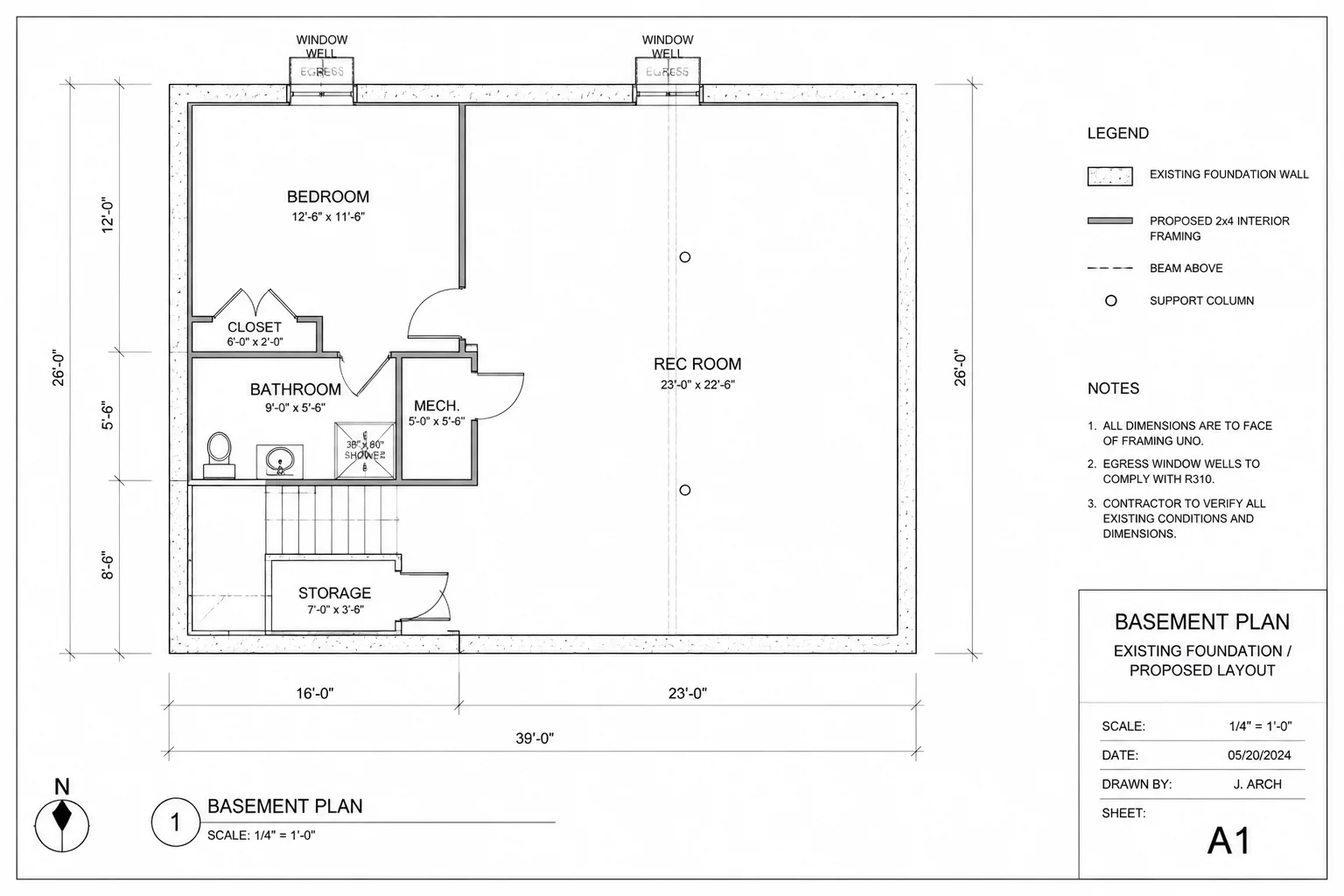

Basement Finishing Project
